HC-110 Automatic High Speed Spouts Bag Nozzle Welding Filling and Capping Integrated Machine

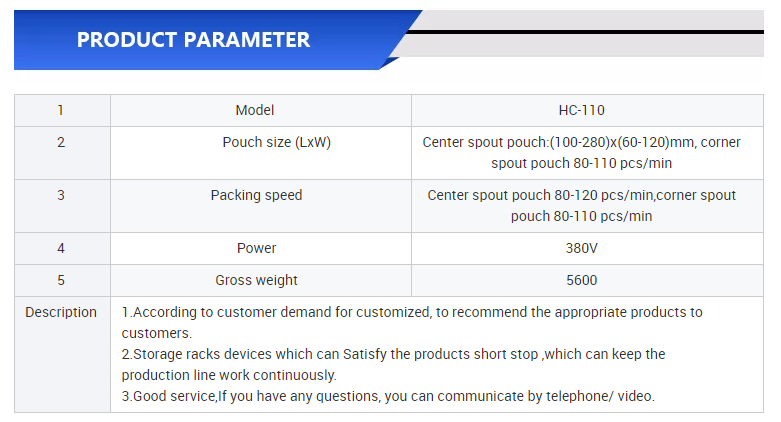

Mechanical model:HC-110
Output 7200-8400 bags per hour

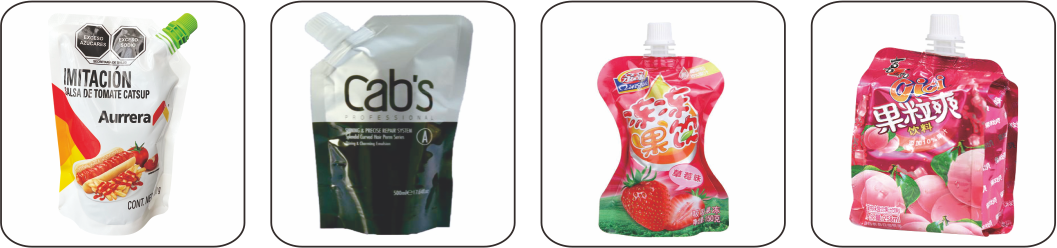

center spout pouch:(100-280)x(60-120)mm
corner spout pouch:(100-220)x(70-110)mm
Spout type:center spout pouch: 80-140 pcs/min  | corner spout pouch 80-130pcs/min
Weight:2500KG
Compressed air:0.6-0.8Mpa, 360NL/min
Cooling water:6L/min
Power:AC 380V , 50HZ , 3P , 11KW
packaging capacity :10-500ml  special capacity can be designed
Dimension(L*W*H):5300*4500*2800(mm)
Gas consumption:0.7m3/min
